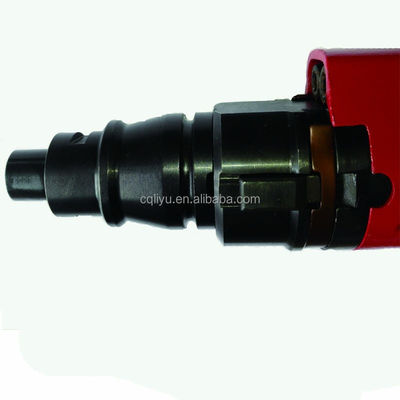

High-quality Tube Cover
 |

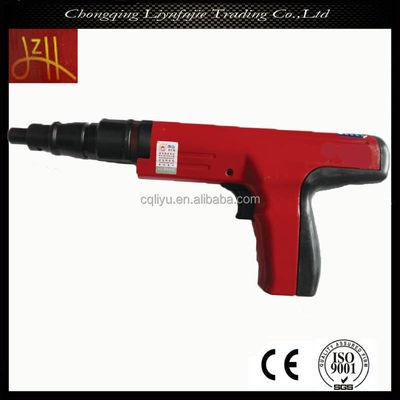

Industrial Power Nail Shooter for .27 Caliber Powder Actuated Fastening Tool 301 RED HIT
Product Details:
| Place of Origin: | Chongqing, China |
| Brand Name: | XINZONGHE |
| Model Number: | NS301 |
Payment & Shipping Terms:
| Price: | $60.00/pieces 1-9 pieces |
|---|
|
Detail Information |
|||
| Grade: | Industrial | Warranty: | N/A |
|---|---|---|---|
| Voltage: | N/A | For Min Nail Length: | 5/8in |
| For Max Nail Length: | 3 1/2in | Customized Support: | OEM |
| Type: | Power Nail Shooter | Capacity: | 100pcs |
| Power Source: | Manual | Name: | .27 Caliber Nail Shooter |
| Application: | Concrete,metal,rock,etc | Load Capacity: | 75-100 Nails |
| Color: | Red | Package: | Plastic Case |
| Material: | Steel | Quality: | High Industrial Qulity |
| Dimension: | 340*50*140 | Weight: | 2.4kg |
Product Description
Product Description

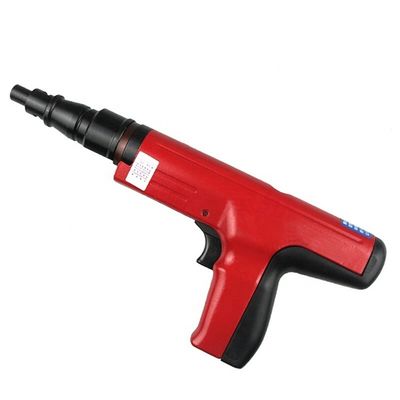

.27 Caliber Powder Actuated Fastening Tool 301 RED HIT Power Loads Nail Shooter
This is an professional, semi-automatic high output, reliable, safe for its simple operation, high efficiency. It performs great,long-time and flexible with great power. This nail gun is widely used in fastening concrete, iron and steel, masonry,.
SPECIFICATIONS FOR NAIL GUN | ||||||
TYPE | ||||||
Model Number | Effect | Velocity | ||||
NS301 | Indirect Effect | Low Velocity | ||||
Main performance parameters | Length(mm) | Pressure(N) | Net. Weight(kg) | |||
340 | 22 | 2.4 | ||||
Applied | Powder Loads | Drive Pins(27-62mm) | Standard | |||
S1 | YD,HYD,PD,HPD,M8,HM8, | GB/T18763-2002 | ||||
Main Features
1) This is an professional, semi-automatic high output, reliable, safe for its simple operation, high efficiency. It performs great, and flexible with great power.
2) With advanced techniques and superior material, it works very long time, and need simple maintainance.
3) Applied the most powerful S1 powder loads, it works fastening concrete,iron and steel, masonry, and stone very well.
Detailed Images

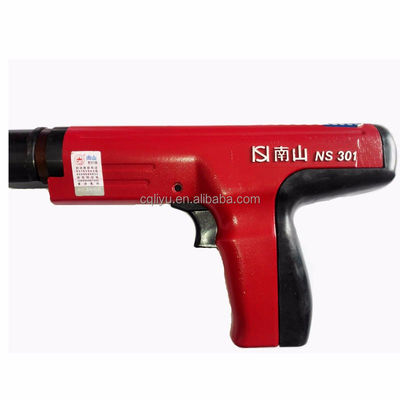

Handle With Easy Operation
Applied to drive pins 25 to 62 mm
Pins Type of YD,HYD,PD, HPD, M8, HM8 screws
Powder Loads
Red Strip charges
Instructions Manual
Step 1:
Pulling forward nailed tubes in place to reset the piston
then pushed sleeves back
Step 2:
Load drive pins into the tube
Step 3:
The cartridge is inserted into Clip slot in the bottom of the grip until the cartridge end flush with the underside of the grip.
If charges has shot some, pulling the magazine upward so as to other charges aiming at cartridge chamber.
Step 4:
Put the nailer vertical to the object surface then compress to the right place, pull the trigger.
After shooting the matrix ,then loose the gun, once fastened. Repeat steps 1·2 for the next fastening
If charges didnot work after pulling the trigger , keeping nailer compressed 5seconds and loose it, then compress nailer in the right place . Finally pull the trigger.
PRECAUTIONS:
1)This nailer are used only above places. Please donot use the nailer in other place.
2)Puttiong the glasses on when operating.
3)Donot point at living things.
Company Profile
Packing & Delivery
Package: one in plastic box, more than one in wooden box or according customers' requirements
Delivery Time: within 15 working days after payment , sample within 5 working days.
