Precision ±1mm/5m 3M Elevated Tripod for Rotary Laser Level Dumpy Level Cross Line Laser
Product Details:
| Place of Origin: | Chongqing, China |
| Brand Name: | HUEPA |
| Certification: | None |
| Model Number: | LP 36 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 sets |
|---|---|
| Price: | $49.00/sets 10-49 sets |
| Packaging Details: | We usually pack them in toolkits first, then in cartons, or according to your requirements. |
| Supply Ability: | 10000 Pack/Packs per Month |
|
Detail Information |
|||
| Warranty: | Other | Dot Numbers: | 5 |
|---|---|---|---|
| Customized Support: | OEM | Size: | 30 X 7 X 6 Inches |
| Precision: | ±1mm/5m | Wavelength: | 30mw/515nm/Green Line; 650nm/dot |
| Product Name: | 3M Elevated Tripod For Rotary Laser Level Dumpy Level Cross Line Laser | Weight: | 7.7Pounds |
| Package Size: | 30 X 7 X 6 Inches | Material: | ABS |
| Tripod Height:: | 48-84cm | Barcket Mount Size:: | 1/4"-20 & 5/8"-11 |
| Barcket Height Fine-tuning Range:: | 7cm | Height Of Rod Section:: | 60cm |
| Height Of Arbitrary Telescopic Rod:: | 0-53cm | Rod Wall Thickness:: | 10mm |
| Port: | Shanghai | ||
Product Description

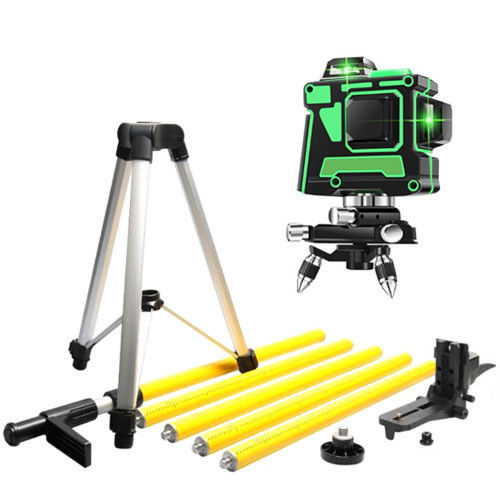

3M Elevated Tripod for Rotary Laser level Dumpy Level Cross Line Laser
LASER TELESCOPING POLE SPECIFICATION
|
Rod Sections:
|
4 telescopic rod + 1 Tail rod 10mm 5/8" 60cm 0-53cm 3.7m 48-84cm 1/4"-20 & 5/8"-11 7cm Aluminum with a polyurethane coating 3.02kg 80cm
|
Application
ADJUSTABLE MOUNTING BRACKET
The bracket can be placed at any height of the rod according to your needs.
With a Height Fine-tuning knob, the fine-tuning range is 7cm. There is a screw for fixing the adjusted height.
Can be adjusted within 5cm in depth so it can be used with any instrument that measures 6.5-11.5 from the back.
Mounting Bracket with 1/4"-20 Male Thread and 5/8"-11 Thread Adapter, compatible with most line lasers and rotary lasers.
HUEPAR LP36 3.7M LASER MOUNTING POLE
Huepar LP36 3.7m laser mounting pole is designed to work with your line or rotary lasers to help you level structures, level grade job sites, and prep farmland.
Huepar LP36 multi-purpose support rod made of aluminum with a polyurethane coating for durability. Easy to read, Graduations are marked in black on the yellow pole in inches and centimeters.

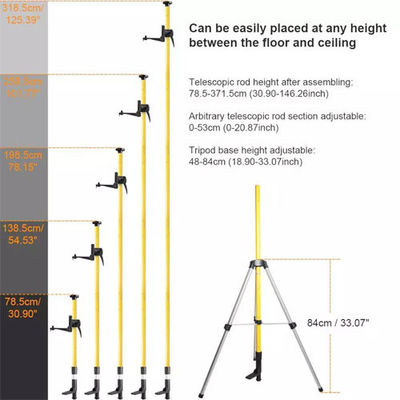

An ideal telescopic rod for any worksite using tools that can be easily placed at any height between the floor and ceiling.
The Tail Rod Section with Arbitrary telescopic rod section can telescope out another 53cm.
It has 3.7m when fully assembled with all sections and both end parts.

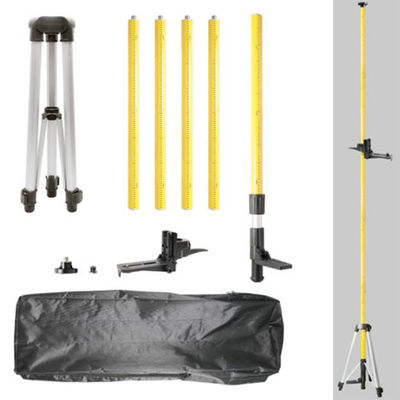

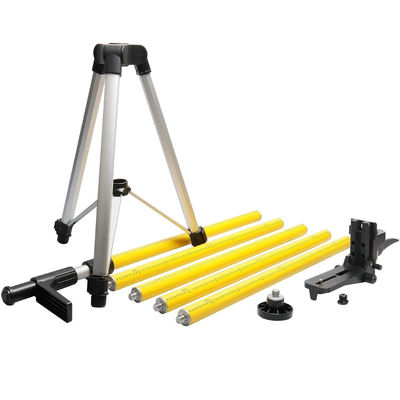

PACKAGE INCLUDED:
4 x Telescopic Rod Section
1 x Tail Rod (with Spring-Loaded Base, Arbitrary Telescopic Rod Section, and Floor Skid Face)
1 x Top Ceiling Skid Plate
1 x Height Adjustable Bracket (with 1/4"-20 Male Thread)
1 x 5/8"-11 Screw Adapter
1 x Adjustable Stable Tripod
1 x Soft Carry Bag
