ISO Standard BX3 Nails for Concrete and Steel Durable Building Fasteners
Product Details:
| Place of Origin: | Chongqing, China |
| Brand Name: | OEM |
| Model Number: | Concrete Steel Nails |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 packs |
|---|---|
| Price: | $8.90/packs 100-499 packs |
|
Detail Information |
|||
| Shank Type: | Smooth | Head Style: | N/A |
|---|---|---|---|
| Type: | Concrete Nail | Material: | Steel |
| Head Diameter: | General | Standard: | ISO |
| Product Name: | Top Quality Building Fasteners BX3 Nails | Surface Treatment: | Electro Galvanized |
| Shank: | Smooth Shank | Shank Diameter: | 3.0mm |
| Color: | As Your Requirements | Application: | Widely Used For Hard Concrete, Steel Plate, Etc |
| Suit Tools: | Battery Concrete Nailers,Gas Concrete Nailers | Packing: | 1000pcs/box,10000pcs/ctn |
| Length: | 16/19/22/25/27/32/38mm | ||
Product Description

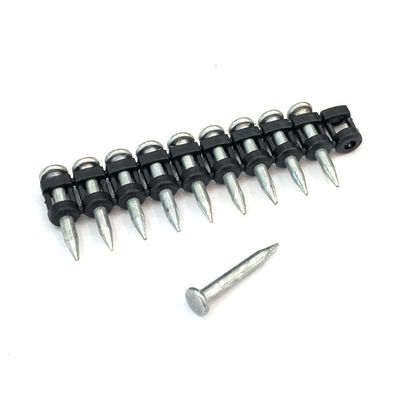

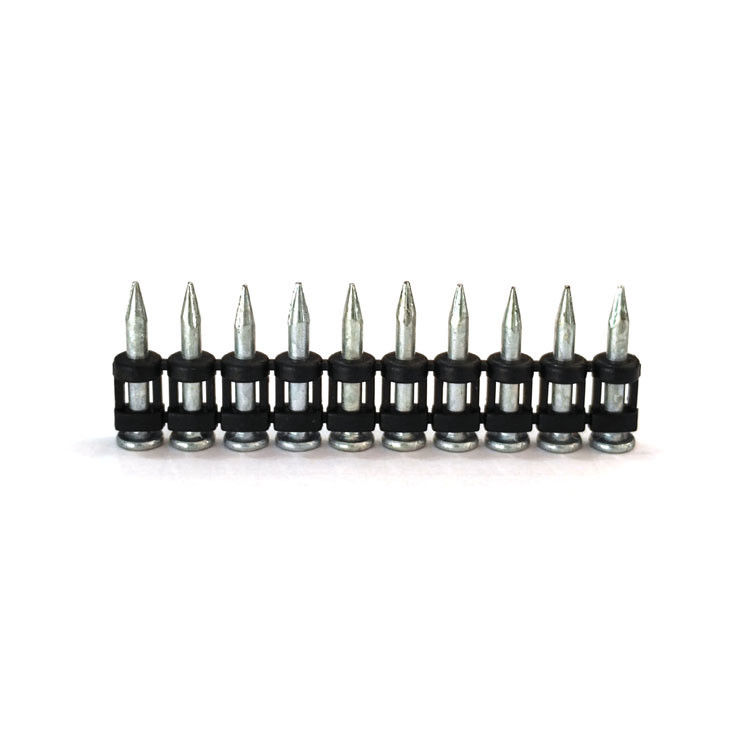

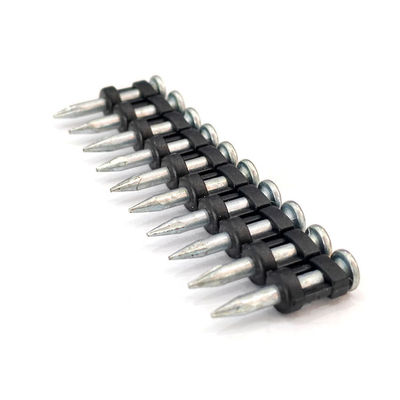

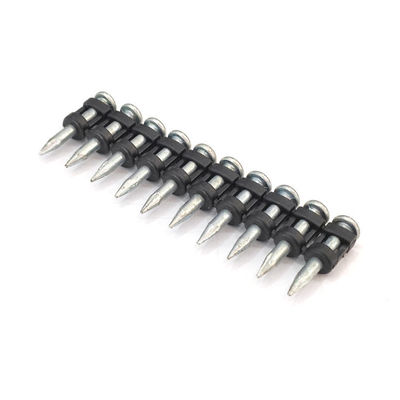

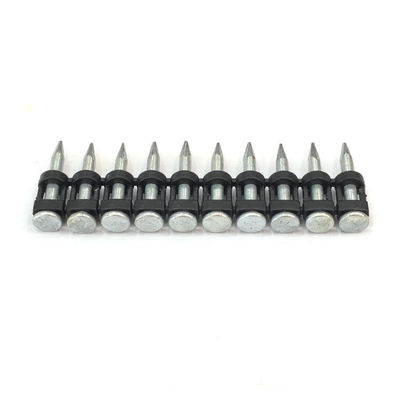

Top Quality Building Fasteners BX3 Nails For Concrete and Steel
Specification
Material | Steel #55 (Carbon steel HRC 58) |
2.9Shank Diameter | 3.0mm |

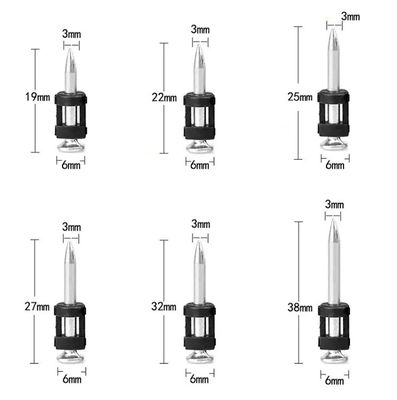

Length | 16mm,19mm,22mm,25mm,27mm,32mm,38mm |
Shank | Smooth shank，step shank |
Plastic frame color | Black,Red,Grey,etc |
Surface treatment | Electro galvanized |
Package | 1000pcs/box,10000pcs(10boxes)/carton |
Application | Widely used for hard concrete, steel plate, brickwork and rocky structures. |
Feature | High hardness, good toughness, not easy to bend broken |
Trade Term | EXW,FCA,FOB,CNF |
Payment Term | 30% T/T in advance,the balance before delivery |
Loading port | Shanghai,Tianjin,or other Chinese port |
With smooth shank patent, it can make penetrability of the pin the best value and also diminish the destruction to the base material.
We use high quality steel for our pins. It can ensure bending nail body to 60 without breakdown when the hardness comes to HRC53 and above. That can effectively avoid hurting people when nails breaking down.
Gas nail is used with nail gun,gas fuel Cell , Which is a type of tool used to drive nails into wood or some other kind of
material. It is usually driven by compressed air (pneumatic), electromagnetism, highly flammable gases such as butane or propane,or, for powder-actuated tools, a small explosive charge. Nail guns have in many ways replaced hammers as tools of choice among builders.
The solution to windows and doors installation fastening consists of gas-actuated fastening tool, gas pin and fuel cell which are developed independently and owned patents by LEEYU. This solution can be directly applied to the quick installation of concrete, brickwork, steel structure etc. This series of products have been passed ISO9001 and exported to European and American and Africa and other Places of the world markets. And LEEYU is the first company who has been successfully generalized this solution in China.
The solution has been widely used in the installation of all kinds of plastic, steel windows & doors and color coated steel plate etc.
Operating Principle:
It adopts gas as the power source and mix up the gas and air in certain proportions. And the mixed gas in the combustion
chamber deflagrates by spark plug. lt pushes piston rod to acton the gas drive pin and fasten the materials to the base material.
We use high quality steel for our pins. It can ensure bending nail body to 60 without breakdown when the hardness comes to HRC53 and above. That can effectively avoid hurting people when nails breaking down.
Gas nail is used with nail gun,gas fuel Cell , Which is a type of tool used to drive nails into wood or some other kind of
material. It is usually driven by compressed air (pneumatic), electromagnetism, highly flammable gases such as butane or propane,or, for powder-actuated tools, a small explosive charge. Nail guns have in many ways replaced hammers as tools of choice among builders.
The solution to windows and doors installation fastening consists of gas-actuated fastening tool, gas pin and fuel cell which are developed independently and owned patents by LEEYU. This solution can be directly applied to the quick installation of concrete, brickwork, steel structure etc. This series of products have been passed ISO9001 and exported to European and American and Africa and other Places of the world markets. And LEEYU is the first company who has been successfully generalized this solution in China.
The solution has been widely used in the installation of all kinds of plastic, steel windows & doors and color coated steel plate etc.
Operating Principle:
It adopts gas as the power source and mix up the gas and air in certain proportions. And the mixed gas in the combustion
chamber deflagrates by spark plug. lt pushes piston rod to acton the gas drive pin and fasten the materials to the base material.
Product Testing
Bending Test
72h Salt Spray Test
