NS301 Design Nail Gun for Concrete and Metal Enhanced Efficiency
Product Details:
| Place of Origin: | Chongqing, China |
| Brand Name: | Nanshan |
| Model Number: | NS301 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $62.00/pieces 10-49 pieces |
| Packaging Details: | High quality NS301 new design nail gun for concrete and metal <br>Package: one in plastic case, more than one in carton or according customers' requirements |
| Supply Ability: | 10000 Piece/Pieces per Month |
|
Detail Information |
|||
| Grade: | Industrial | Warranty: | None |
|---|---|---|---|
| Voltage: | None | For Min Nail Length: | 1/2in |
| For Max Nail Length: | 2 1/4in | Customized Support: | OEM |
| Type: | Finish Nail Gun | Capacity: | Strong |
| Power Source: | Pneumatic, Manual | Product Name: | Powder Nail Gun |
| Model: | NS301 | Application: | Metallurgy,construction,ornamenting,shipbuilding |
| Length: | 340mm | Weight: | 2.5kgs |
| Power Loads: | 27cal.,6.8*11 | Type Of Nail: | YD,HYD,PD,HPD,M6A,HM6A,M8,HM8 |
| Nail Length: | Less Than 76mm | Inventory: | Available |
| Port: | Shanghai Port,Shenzhen Port,Guangzhou Port | ||
Product Description
Production Description

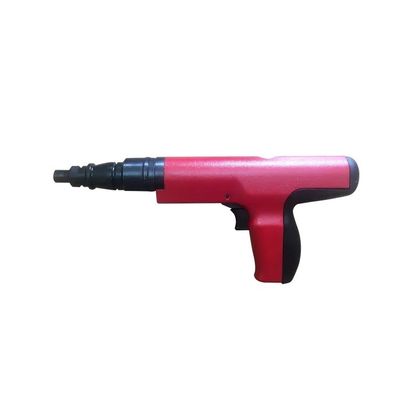

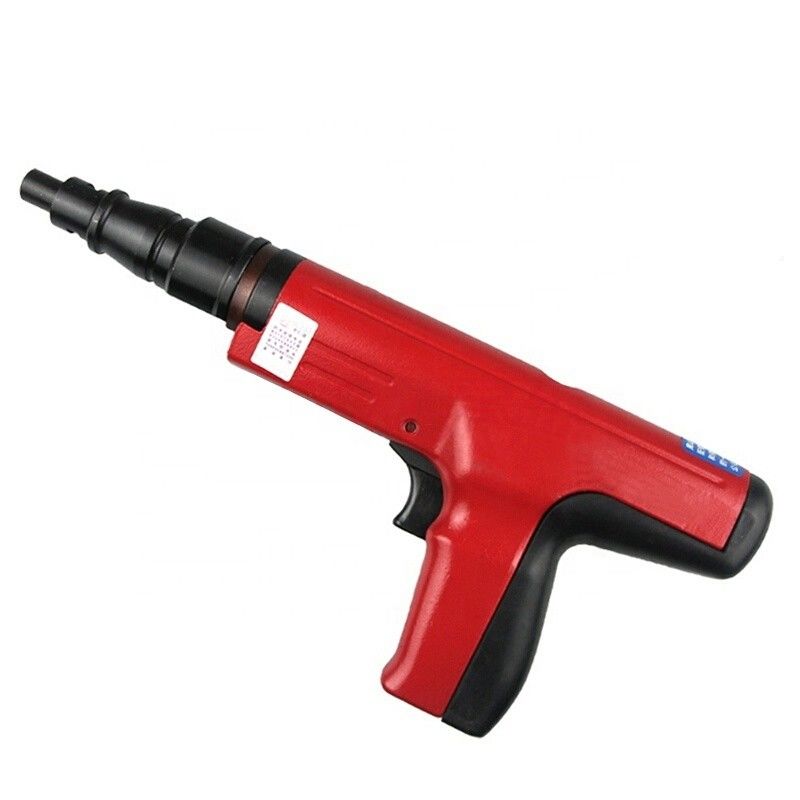

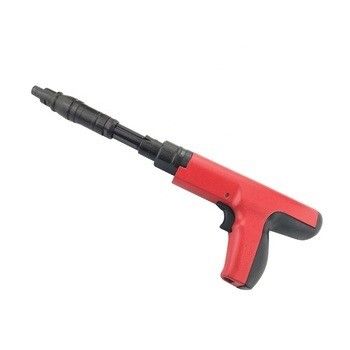

High quality NS301 new design nail gun for concrete and metal
This is a professional, semi-automatic high output, reliable, safe for its simple operation, high efficiency. It performs great,long-time and flexible with great power. This nail gun is widely used in fastening concrete, iron and steel, masonry.
Model No. | NS301 |
Weight | 3.5kg |
Length | 340mm |
L x W x H | 350x55x180 mm |
Cartridge Used | S1JL(.27cal./6.8*11mm),Black,Red,Yellow,Green |
Fastener Used | PD,NK,QD, HQD, M6, M8, M10, TB eyelet pins, 13-76mm |
Main Features:
1) This is an professional, semi-automatic high output, reliable, safe for its simple operation, high efficiency. It performs great, and flexible with great power.
2)With advanced techniques and superior material, it works very long time, and need simple maintainance.
3)Applied the most powerful S1 powder loads, it works fastening concrete,iron and steel, masonry, and stone very well.
Detailed Images
Handle With Easy Operation
Applied to drive pins 25 to 62 mm
Pins Type of YD,HYD,PD, HPD, M8, HM8 screws

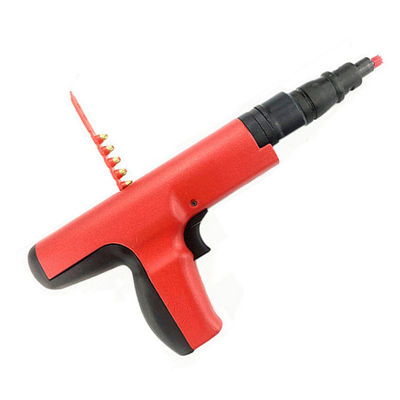

Powder Loads
Red Strip charges
Instructions Manual
Step 1:
Pulling forward nailed tubes in place to reset the piston
then pushed sleeves back
Step 2:
Load drive pins into the tube
Step 3:
The cartridge is inserted into Clip slot in the bottom of the grip until the cartridge end flush with the underside of the grip.
If charges has shot some, pulling the magazine upward so as to other charges aiming at cartridge chamber.
Step 4:
Put the nailer vertical to the object surface then compress to the right place, pull the trigger.
After shooting the matrix ,then loose the gun, once fastened. Repeat steps 1·2 for the next fastening
If charges didn‘t work after pulling the trigger , keeping nailer compressed 5 seconds and loose it, then compress nailer in th e right place . Finally pull the trigger.
PRECAUTIONS:
1)This nailer are used only above places. Please don’t use the nailer in other place.
2)Putting the glasses on when operating.
3)Don‘t point at living things.

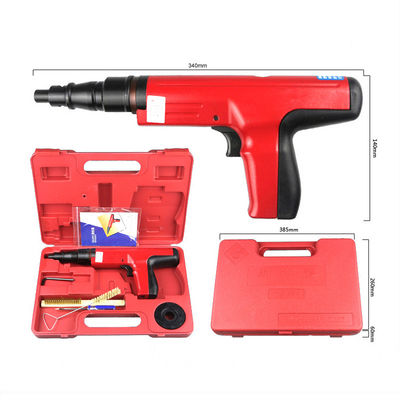

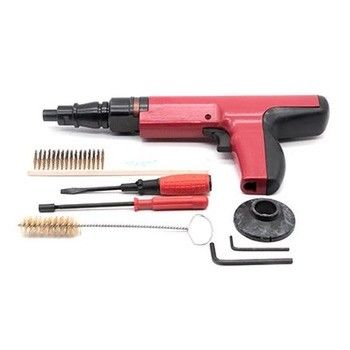

Equipment accessories
Packing and Delivery
Package: one in plastic box, more than one in wooden box or according customers' requirements
Delivery Time: within 25 working days after payment , sample within 5 working days.
Our Factory
Chongqing Liyufujie Trading Co., Ltd.
Established in 2013, Liyufujie professionally supply power actuated guns, gas nail guns and their accessories ( nails, powder loads, fuel cells) worldwide. A team of engineers engaged in this field for 8-25 years. A team of sales have good knowledge of products and high level of foreign language to give you good service. We exported our products to more than 20 countries.In China,we have more than 20 shops in the big construction market, all of the below listed items are on sale.
