Using high-quality Steel material + galvanized steel screws as raw materials, it is guaranteed to be a new environmentally friendly
material used for the first time, high-quality and durable, and more assured to use.
 |

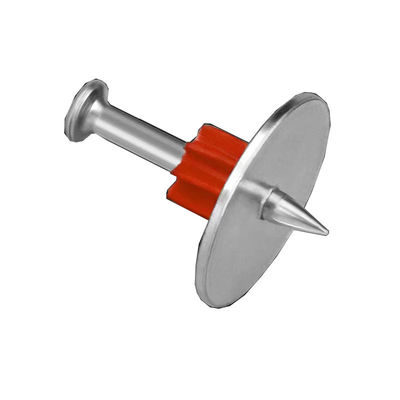

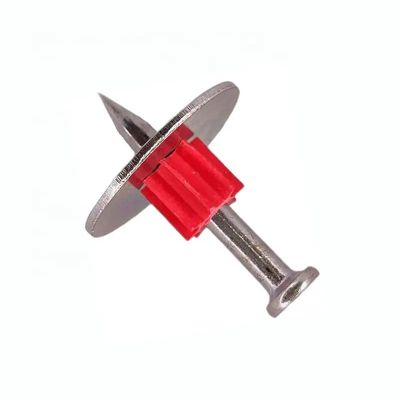

Building Construction Material Fixing High Speed PDW Pins Concrete Steel Nails with 25mm Steel Washer ISO Standard
Product Details:
| Place of Origin: | Chongqing, China |
| Brand Name: | LY |
| Model Number: | PDW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100000 pieces |
|---|---|
| Price: | $0.05/pieces 100000-199999 pieces |
| Packaging Details: | We usually pack them in toolkits first, then in cartons, or according to your requirements. |
| Supply Ability: | 1000000 Ton/Tons per Year |
|
Detail Information |
|||
| Shank Type: | Smooth | Head Style: | Flat |
|---|---|---|---|
| Type: | Concrete Nail | Material: | Steel, #60 Steel |
| Head Diameter: | 7.6mm | Standard: | ISO |
| Name: | PDW Shooting Nails | Nail Length: | 19mm-76mm |
| Shank Diameter: | 3.7mm | Surface Treatment: | Electro Galvanized |
| Packing: | 100pcs/box,50boxes/carton | Application: | Building Construction Material Fixing |
| Delivery Time: | 10-15days | Head Dia.: | 7.6mm |
| Payment Term: | 30%TT Advance + 70% Balance | Port: | Shanghai,Guangzhou |
Product Description
Production Description
With special materials, concrete nails are specialty nails compared with common iron nails. It is harder, the shank is short and thick commonly and it has excellent piecing and fixing strength. With these features, concrete nails make ideal nails and fasteners for firm and strong sites.
Galvanized concrete nails offer excellent anti-bending, anti-crack and safety uses due to the processing of advanced heat treatment technology. It is made from high quality
The nail surface treatment can be polished, electro galvanizing, blackish, etc.
Specification
Product Name | Concrete shooting nails |
Material | high tensile steel |
Shank Type | Straight shank/Step shank |
Shank Diameter | 3.7mm |
Nail Length | 16mm-76mm |
Head | 7.6mm |
Finish | Mechanical Galvanised/ Electric galvanized |
Color of Coating | OEM |
Point | Bullet head point/cut point,pinch point |
Head Diameter | Diameter | Length (mm) | Nails/box | Nails/carton |
7.6mm/.300" | 3.7mm/.145" | 16 | 100 | 5,000 |
7.6mm/.300" | 3.7mm/.145" | 19 | 100 | 5,000 |
7.6mm/.300" | 3.7mm/.145" | 22 | 100 | 5,000 |
7.6mm/.300" | 3.7mm/.145" | 25 | 100 | 5,000 |
7.6mm/.300" | 3.7mm/.145" | 27 | 100 | 5,000 |
7.6mm/.300" | 3.7mm/.145" | 32 | 100 | 5,000 |
7.6mm/.300" | 3.7mm/.145" | 37 | 100 | 5,000 |
7.6mm/.300" | 3.7mm/.145" | 42 | 100 | 5,000 |
7.6mm/.300" | 3.7mm/.145" | 47 | 100 | 5,000 |
7.6mm/.300" | 3.7mm/.145" | 52 | 100 | 5,000 |
7.6mm/.300" | 3.7mm/.145" | 63 | 100 | 5,000 |
7.6mm/.300" | 3.7mm/.145" | 76 | 100 | 5,000 |
Details Images
• Bending 60-90 degree no broken----Best toughness
• Hardness: 54-58HRC-----Best Hardness
•All production processes are carried out in our own factories-----Zero outsourcing
Shank Dia: 3.7mm/.145"
Product Testing
Concrete Nails Testing:
Tensile Strength test to ensure nails material fits the standard.
Bending test to ensure nails Toughness.
Specification Test to ensure nails diameter, length, head diameter fits the drawing.
Galvanised thickness test to ensure nails galvanised thickness over 5-15um.
Hardness test to ensure nails hardness 54-58HRC.
Shooting test to ensure nails can shoot through 5mm steel.
Tensile Strength test to ensure nails material fits the standard.
Bending test to ensure nails Toughness.
Specification Test to ensure nails diameter, length, head diameter fits the drawing.
Galvanised thickness test to ensure nails galvanised thickness over 5-15um.
Hardness test to ensure nails hardness 54-58HRC.
Shooting test to ensure nails can shoot through 5mm steel.
Packing and Delivery
Our Factory
Established in 2013, Liyufujie professionally supply power actuated guns, gas nail guns and their accessories ( nails, powder loads, fuel cells) worldwide. A team of engineers engaged in this field for 8-25 years. A team of sales have good knowledge of products and high level of foreign language to give you good service. We exported our products to more than 20 countries.In China,
we have more than 20 shops in the big construction market, all of the below listed items are on sale.Certifications
FAQ
Q1: Where are your Factory?
Q7:Can you produce according to customers' design?
A:Sure, we are professional manufacturer, OEM and ODM are both welcome. We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us. We can produce the product under your brand name, also the size can be changed as your requirement.
A: We are located in Chongqing,China.
Q2: Are you trading company or manufacturer ?
A: We are a professional fastener manufacturer.
Q3:Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What payment terms do you accept ?
A: At least 30% TT deposite,the remain balance paid before loading in our factory.
Q5: What's your MOQ? And how does your delivery?
A: MOQ is 10,000pcs in usual. But if your order cannot reach this limit,also want to purchase our products. Don't worry, We also accept sample orders, if the producing is not too tight.
Q6:What’s your Delivery Time?
A: Generally it is 5-15 days，we have 10-lines production machine who is producing insulation fastener. And about 40,000 pieces production can be produced for a machine-line per day. So we can guarantee the delivery time very fast.
Q2: Are you trading company or manufacturer ?
A: We are a professional fastener manufacturer.
Q3:Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What payment terms do you accept ?
A: At least 30% TT deposite,the remain balance paid before loading in our factory.
Q5: What's your MOQ? And how does your delivery?
A: MOQ is 10,000pcs in usual. But if your order cannot reach this limit,also want to purchase our products. Don't worry, We also accept sample orders, if the producing is not too tight.
Q6:What’s your Delivery Time?
A: Generally it is 5-15 days，we have 10-lines production machine who is producing insulation fastener. And about 40,000 pieces production can be produced for a machine-line per day. So we can guarantee the delivery time very fast.
Q7:Can you produce according to customers' design?
A:Sure, we are professional manufacturer, OEM and ODM are both welcome. We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us. We can produce the product under your brand name, also the size can be changed as your requirement.
