Using high-quality Steel material + galvanized steel screws as raw materials, it is guaranteed to be a new environmentally friendly
material used for the first time, high-quality and durable, and more assured to use.
 |

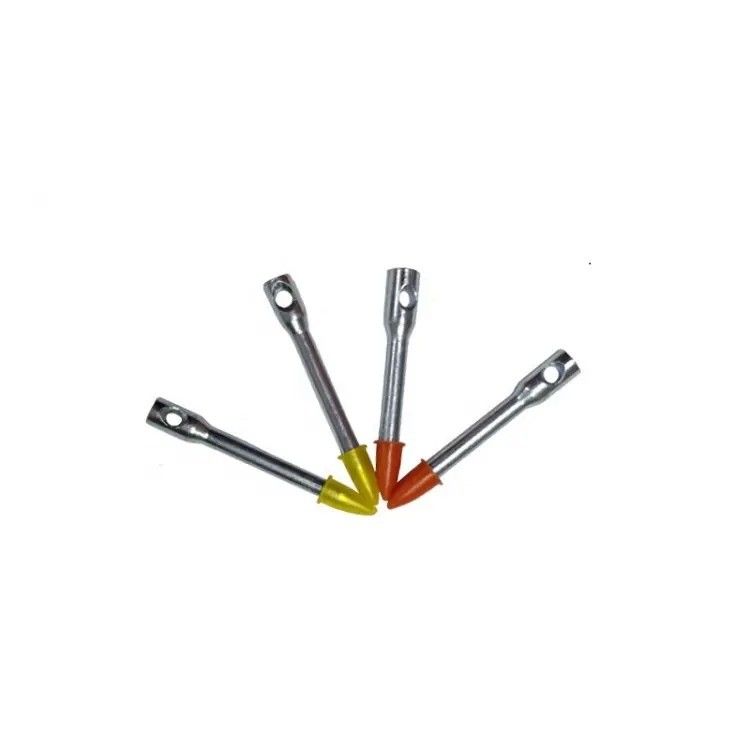

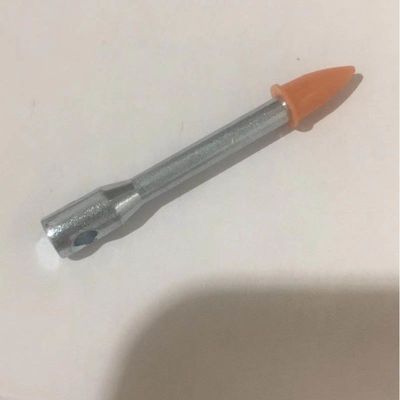

3.7mm Shank Diameter ZK 1/4 Eyelet Drive Pin with High Velocity Fasteners and Eye Hole
Product Details:
| Place of Origin: | Chongqing, China |
| Brand Name: | LY |
| Model Number: | ZK 1/4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 boxes |
|---|---|
| Price: | $2.30/boxes 100-499 boxes |
| Packaging Details: | We usually pack them in toolkits first, then in cartons, or according to your requirements. |
| Supply Ability: | 5000000 Box/Boxes per Month |
|
Detail Information |
|||
| Shank Type: | Smooth | Head Style: | Flat |
|---|---|---|---|
| Type: | Masonry Nail, Decorative Nail | Material: | Steel, Steel |
| Head Diameter: | 6.3mm | Standard: | ISO, ISO |
| Name: | Fasteners Ceiling Nail Gun Nails For Decoration And Construction | Color: | Orange And Yellow |
| Nail Length: | 40mm,50mm,60mm | Shank Diameter: | 3.7mm |
| Application: | Ceiling | Inventory: | Available |
| Port: | Shanghai | ||
Product Description
Production Description
Pin Powder Actuated Tool
Fastener Drive Pin Steel Nail
Head Dia.: 6.3mm/.248"
Shank Dia.:3.7mm/.145"
Specification
Product Name | ZK1/4 Eyelet Drive |
Material | high tensile steel |
Shank Type | Straight shank/Step shank |
Shank Diameter | 3.7mm |
Nail Length | 16mm-76mm |
Head | 6.3mm |
Finish | Mechanical Galvanised/ Electric galvanized |
Color of Coating | OEM |
Point | Bullet head point/cut point,pinch point |
Model | Head Diameter | Diameter | Length (mm) | Eye Hole Diameter |
ZK1/4-30 | .250"(6.3mm) | 3.7mm/.145" | 30 | 3.5mm |
ZK1/4-40 | .250"(6.3mm) | 3.7mm/.145" | 40 | 3.5mm |
ZK1/4-50 | .250"(6.3mm) | 3.7mm/.145" | 50 | 3.5mm |
ZK1/4-60 | .250"(6.3mm) | 3.7mm/.145" | 60 | 3.5mm |
Details Images
Product Testing
Concrete Nails Testing:
Tensile Strength test to ensure nails material fits the standard.
Bending test to ensure nails Toughness.
Specification Test to ensure nails diameter, length, head diameter fits the drawing.
Galvanised thickness test to ensure nails galvanised thickness over 5-15um.
Hardness test to ensure nails hardness 54-58HRC.
Shooting test to ensure nails can shoot through 5mm steel.
Tensile Strength test to ensure nails material fits the standard.
Bending test to ensure nails Toughness.
Specification Test to ensure nails diameter, length, head diameter fits the drawing.
Galvanised thickness test to ensure nails galvanised thickness over 5-15um.
Hardness test to ensure nails hardness 54-58HRC.
Shooting test to ensure nails can shoot through 5mm steel.
Packing and Delivery
Our Factory
Established in 2013, Liyufujie professionally supply power actuated guns, gas nail guns and their accessories ( nails, powder loads, fuel cells) worldwide. A team of engineers engaged in this field for 8-25 years. A team of sales have good knowledge of products and high level of foreign language to give you good service. We exported our products to more than 20 countries.In China,
we have more than 20 shops in the big construction market, all of the below listed items are on sale.Certifications
FAQ
Q1: Where are your Factory?
Q7:Can you produce according to customers' design?
A:Sure, we are professional manufacturer, OEM and ODM are both welcome. We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us. We can produce the product under your brand name, also the size can be changed as your requirement.
A: We are located in Chongqing,China.
Q2: Are you trading company or manufacturer ?
A: We are a professional fastener manufacturer.
Q3:Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What payment terms do you accept ?
A: At least 30% TT deposite,the remain balance paid before loading in our factory.
Q5: What's your MOQ? And how does your delivery?
A: MOQ is 10,000pcs in usual. But if your order cannot reach this limit,also want to purchase our products. Don't worry, We also accept sample orders, if the producing is not too tight.
Q6:What’s your Delivery Time?
A: Generally it is 5-15 days，we have 10-lines production machine who is producing insulation fastener. And about 40,000 pieces production can be produced for a machine-line per day. So we can guarantee the delivery time very fast.
Q2: Are you trading company or manufacturer ?
A: We are a professional fastener manufacturer.
Q3:Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What payment terms do you accept ?
A: At least 30% TT deposite,the remain balance paid before loading in our factory.
Q5: What's your MOQ? And how does your delivery?
A: MOQ is 10,000pcs in usual. But if your order cannot reach this limit,also want to purchase our products. Don't worry, We also accept sample orders, if the producing is not too tight.
Q6:What’s your Delivery Time?
A: Generally it is 5-15 days，we have 10-lines production machine who is producing insulation fastener. And about 40,000 pieces production can be produced for a machine-line per day. So we can guarantee the delivery time very fast.
Q7:Can you produce according to customers' design?
A:Sure, we are professional manufacturer, OEM and ODM are both welcome. We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to contact us. We can produce the product under your brand name, also the size can be changed as your requirement.
